Product Introduction

1. Product Parameters

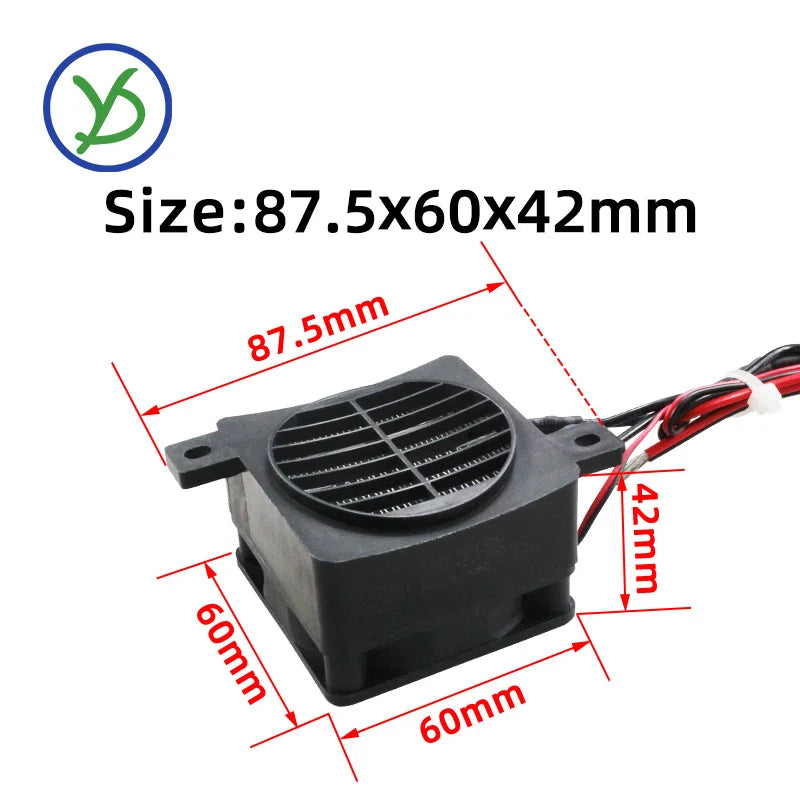

Size: 87.5 x 60 x 42mm/87.5 x 60 x 52mm

Installation Hole Distance: 87mm

Mounting Hole Size: φ4mm

Heat Material: PTC thermostatic ceramic heating sheet

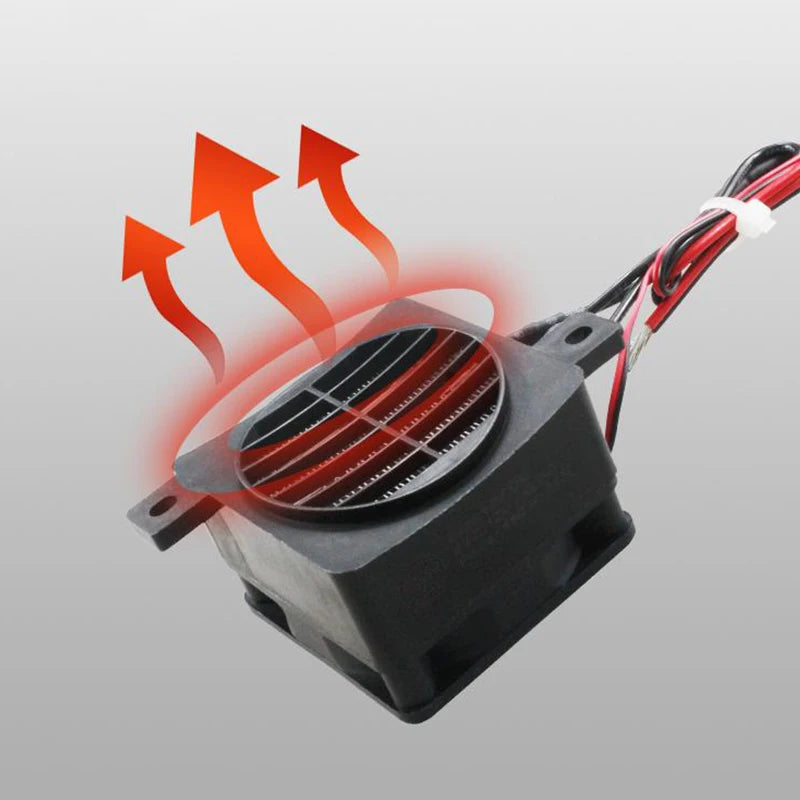

Heat Methods: Heat radiation by air flow

Lead Wire Material: High-Temperature resistant wires

The Length Of Lead Wires : 200mm

The Length Of Bare Wires : 10mm

Rated Voltage: 12V 24V 48V 110V 220V Optional

Rated Power: 50W~400W Optional

Notice: The power is reference value. the better the dissipation is, the bigger the power is.In different working environments, power will have a plus or minus 25% tolerance.

Please feel free to contact our customer service if you want to know more specifications and details

2. Application:

The characteristic of PTC material is constant temperature on the surface.Apply to Air heating/oven/shoe dryer/dehumidifier/heater/dryer/flower room heating/breeding hatching/animal heat preservation/humidifier/car/3D printer etc

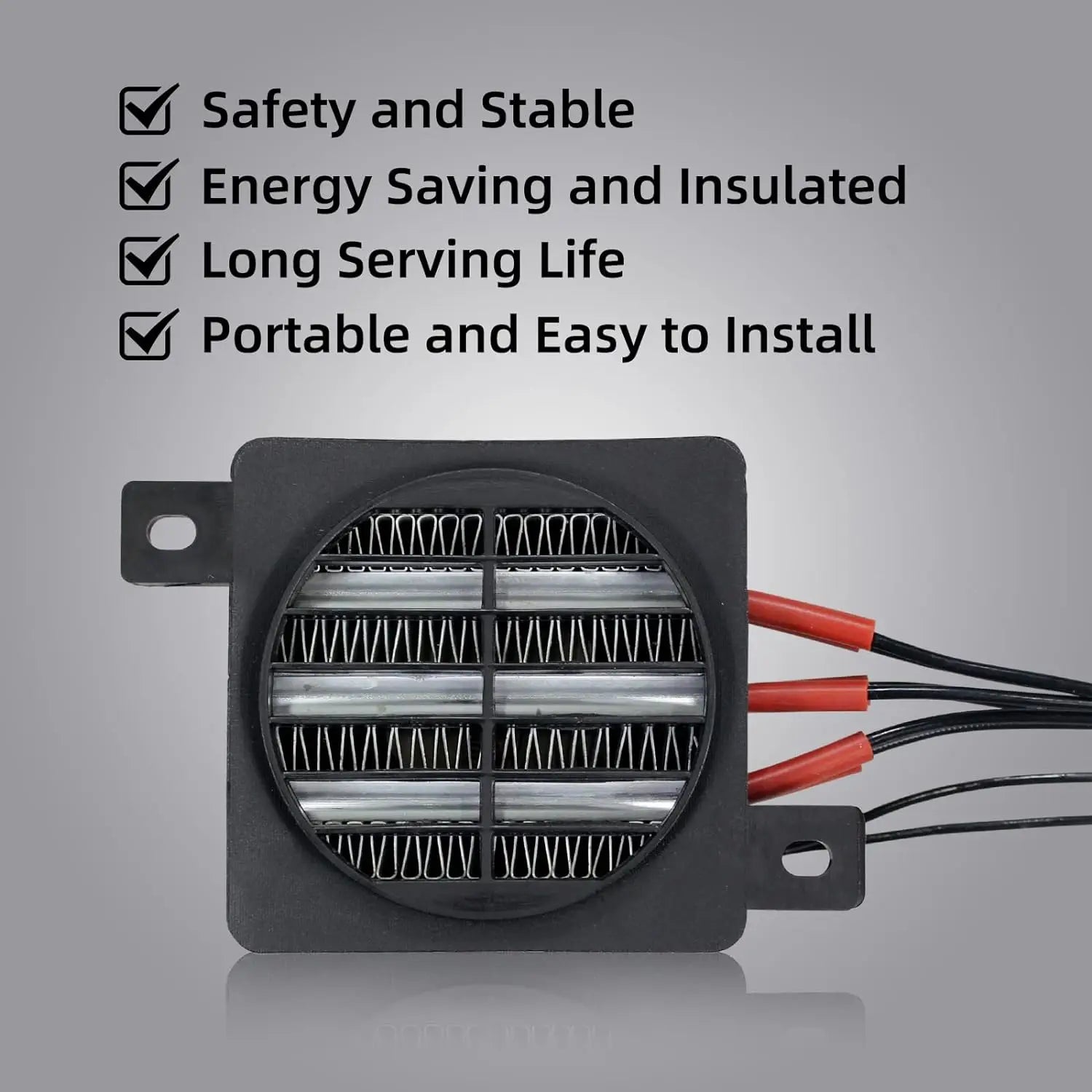

3. Advantage:

Constant Temperature Heating: Ceramic constant temperature heating technology,safe and energy-saving

Quickly Response: After powering on, PTC quickly converts electrical energy into heat energy, can feel the hot air within 30S

Long Service Life: Can supply of heat source continuously for more than 10,000 hours

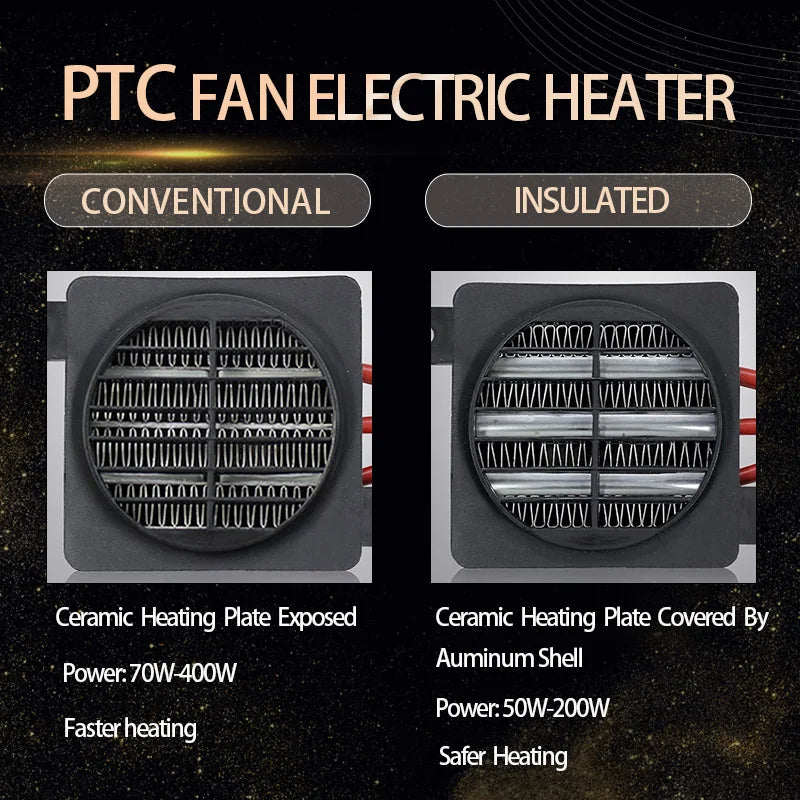

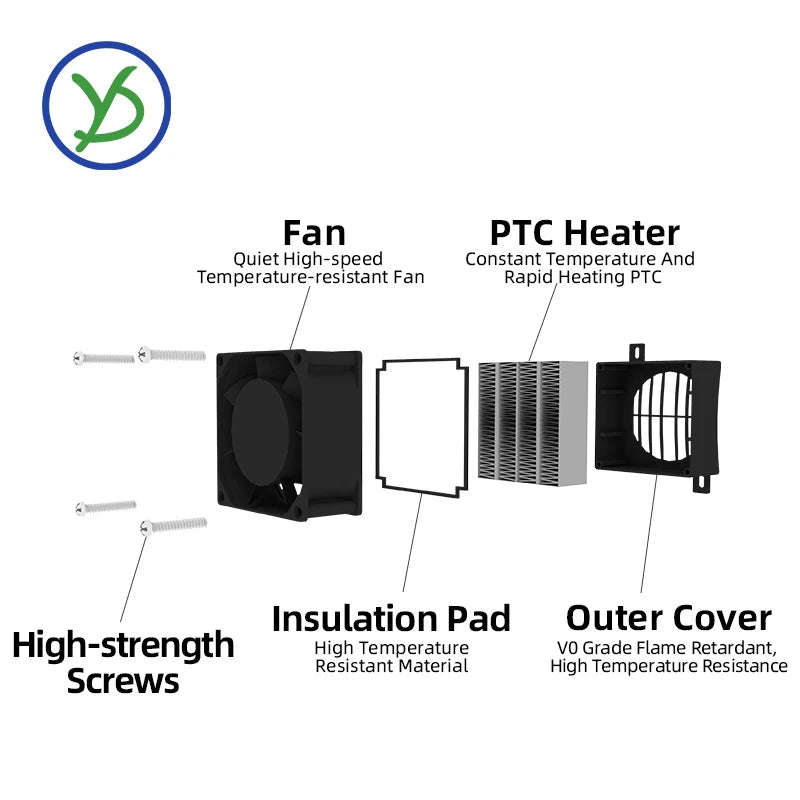

Conventional & Insulated

Conventional Heater：Ceramic heating plate exposed，faster heating.Power: 70W-400W Optional

New Type Insulated Heater:Ceramic heating plate covered By aluminum shell,safer heating.Power: 50W-200W Optional

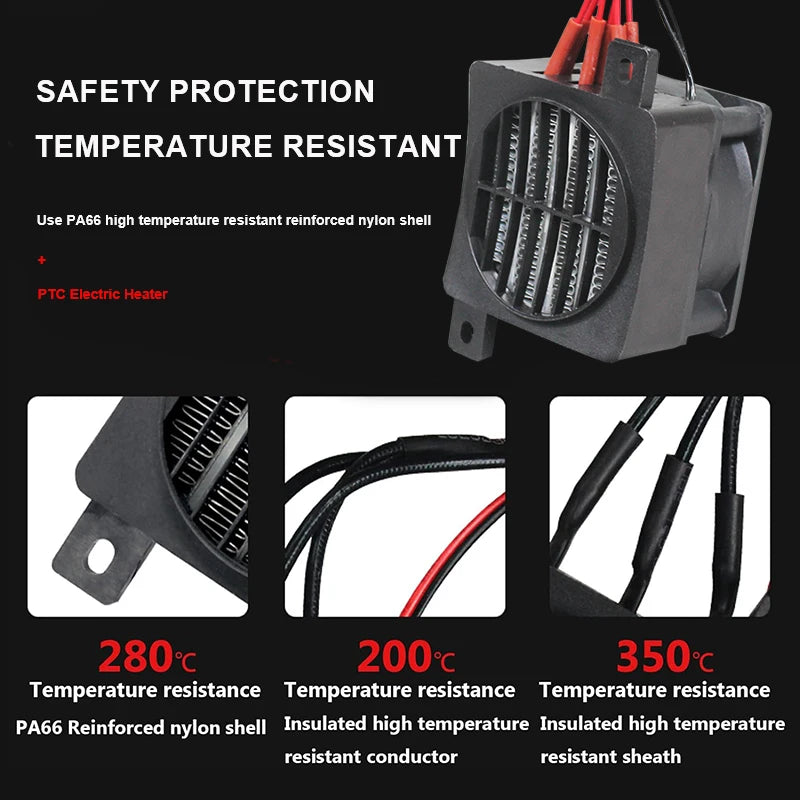

Safety Protection

Fan motor temperature resistant：80℃

Use PA66 high temperature resistant reinforced nylon shelland high-temperature resistant wires,high temperature resistance

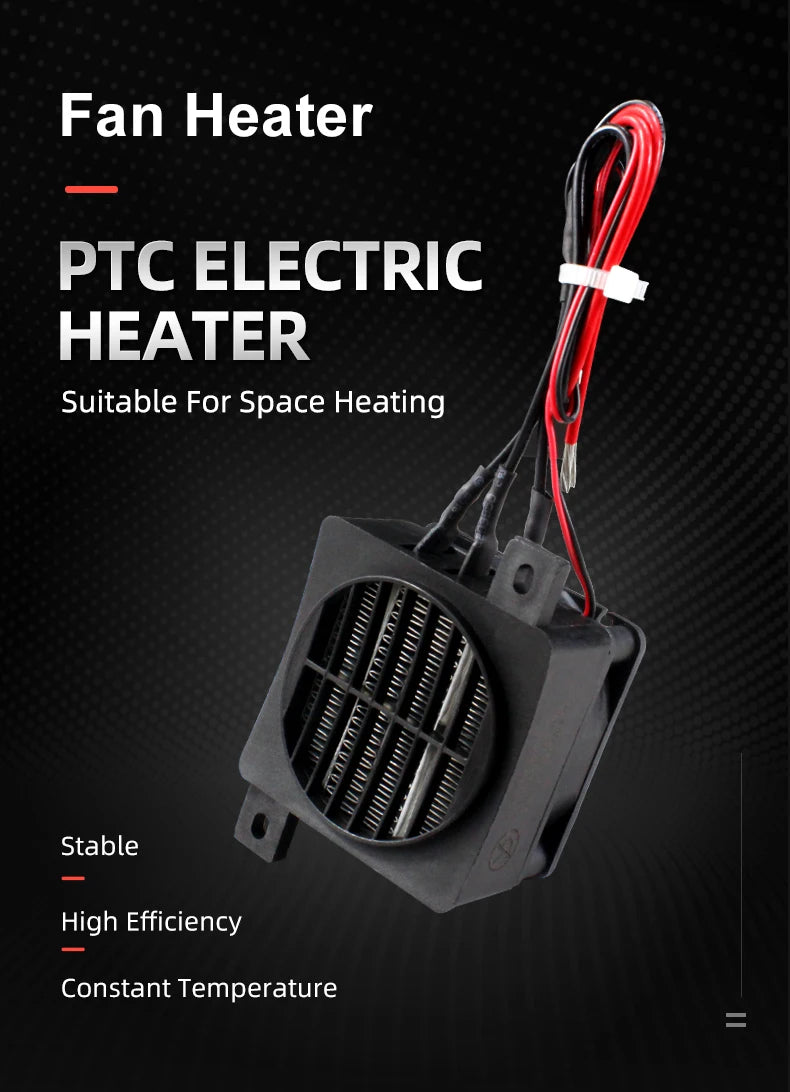

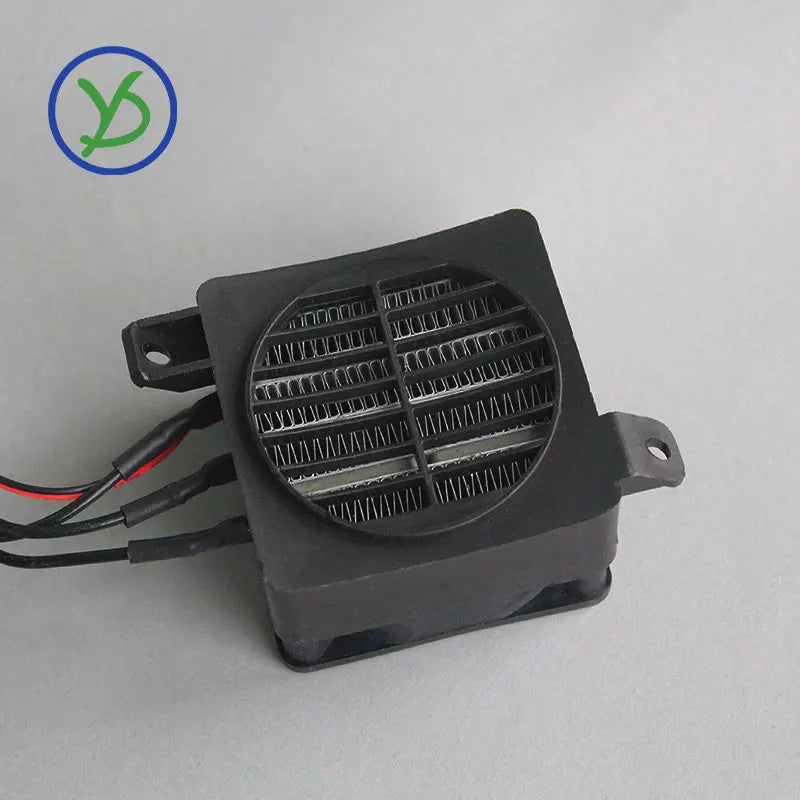

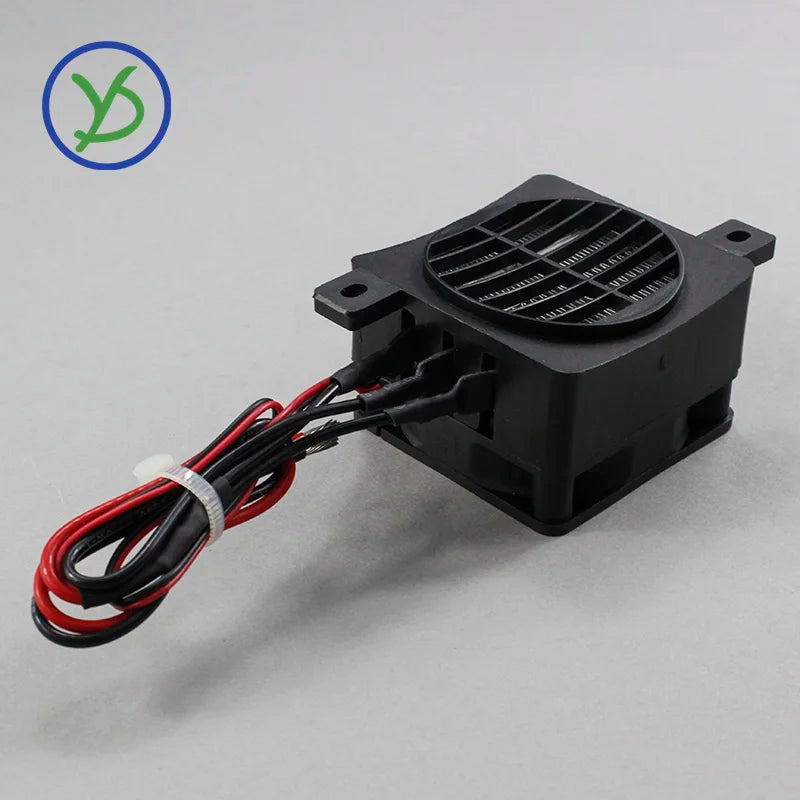

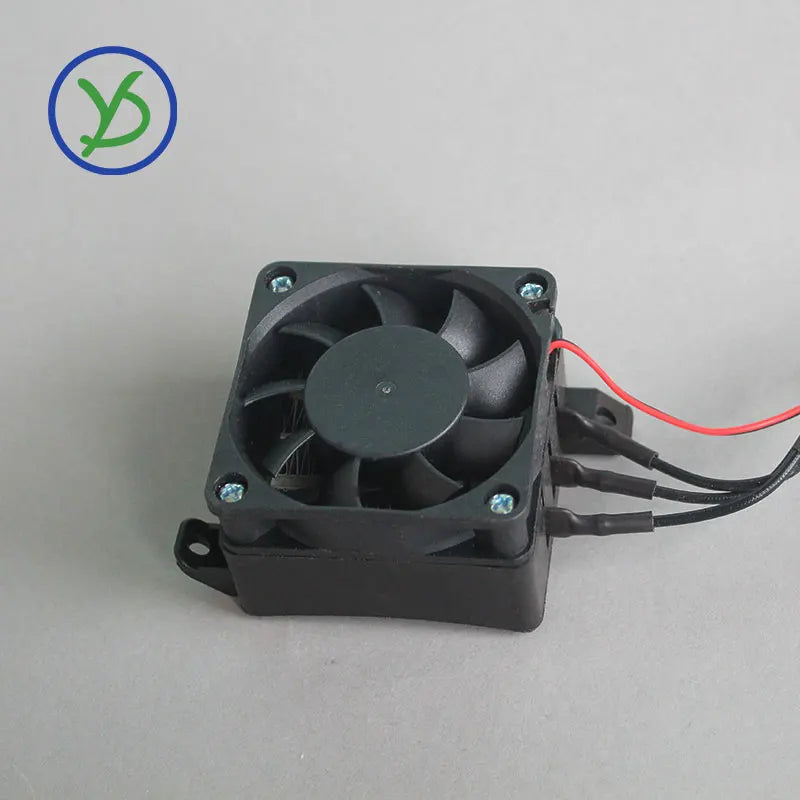

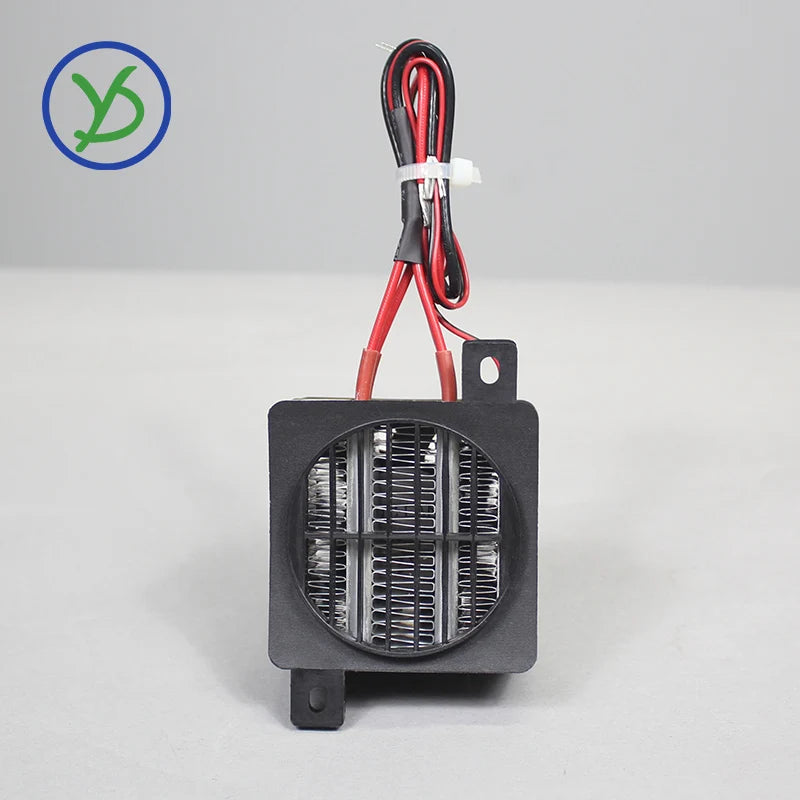

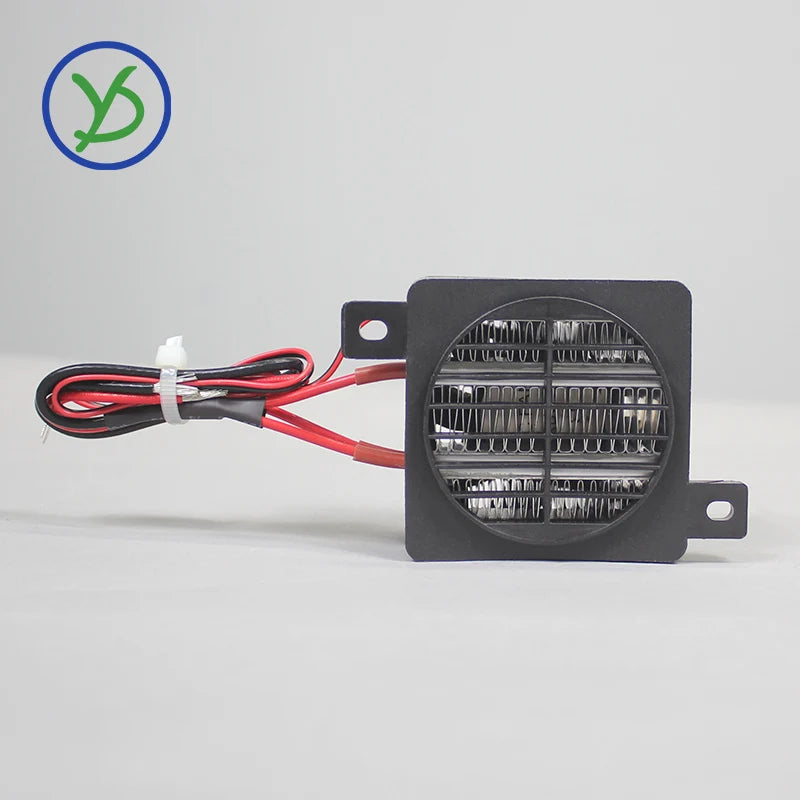

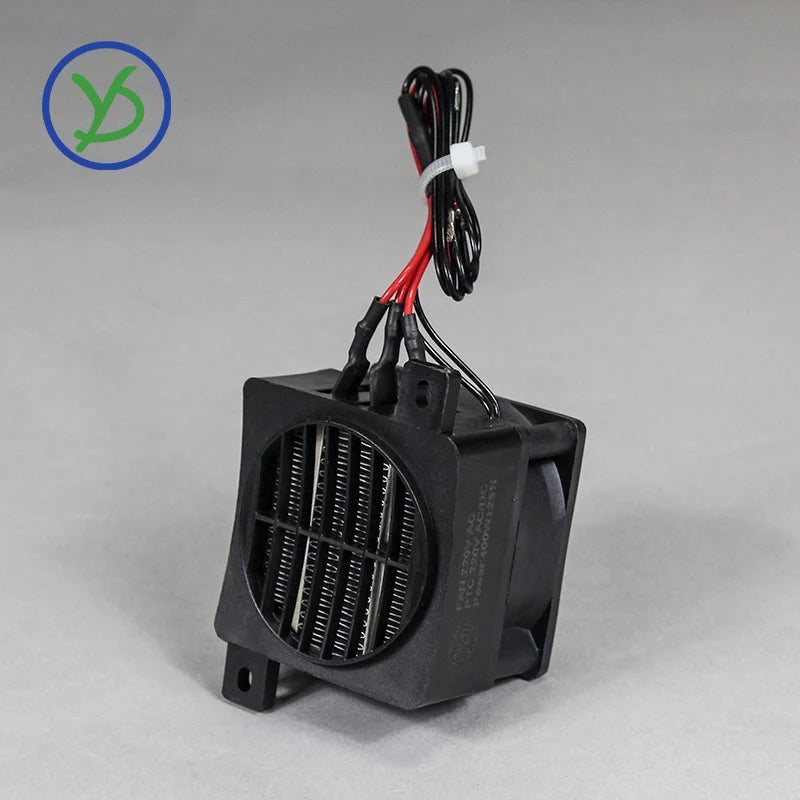

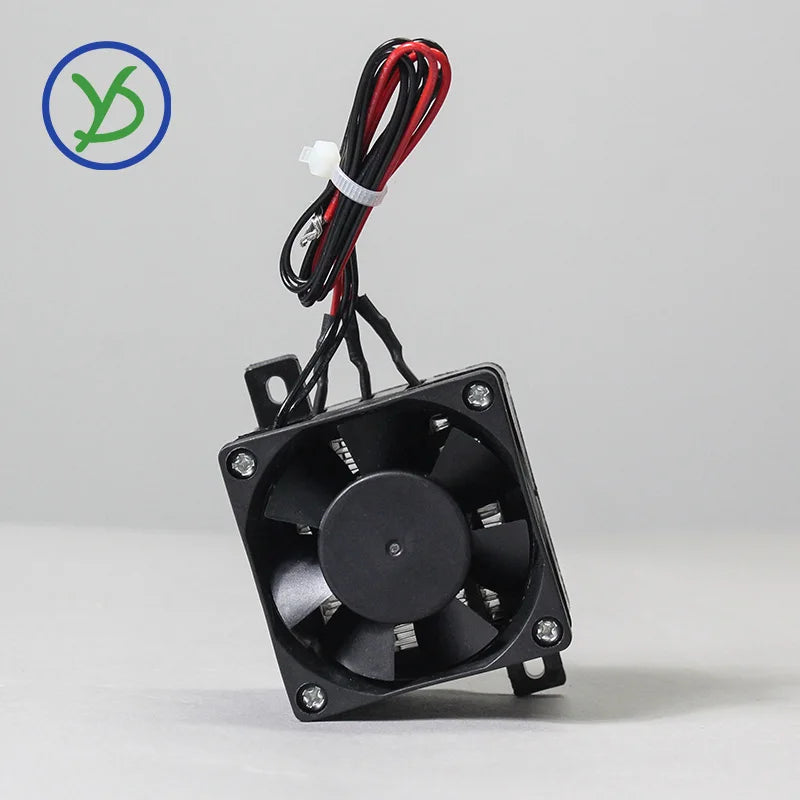

Item Show

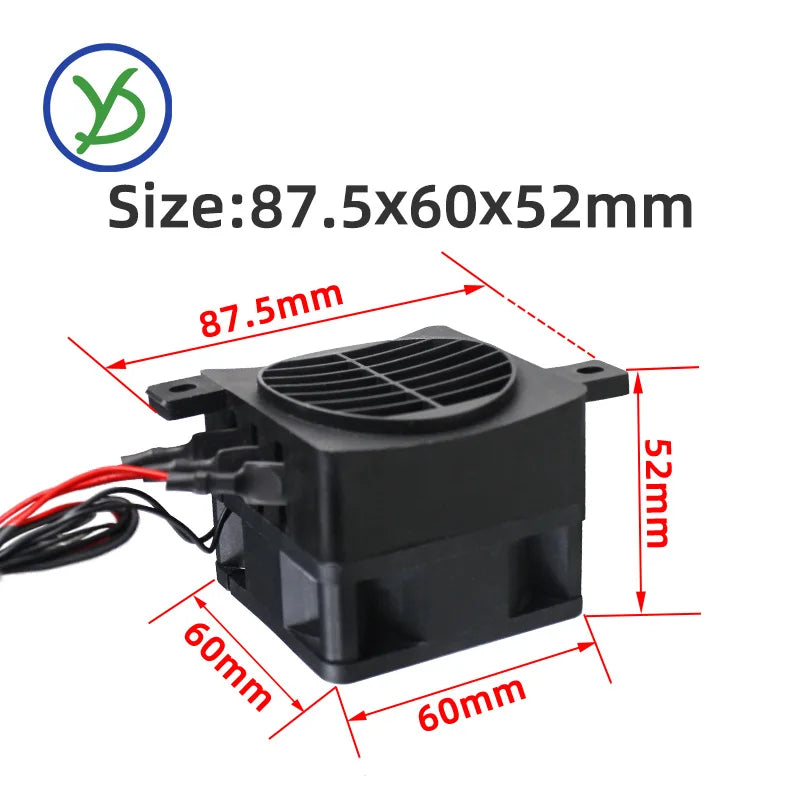

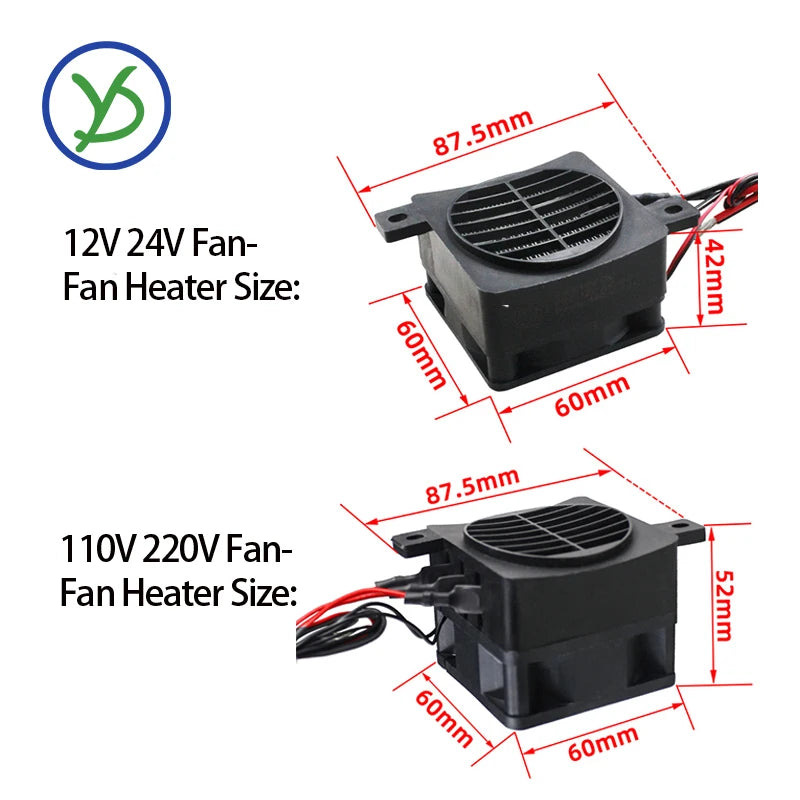

Product Size

12V 24V Fan-Fan Heater Size:

110V 220V Fan-FanHeater Size:

Application

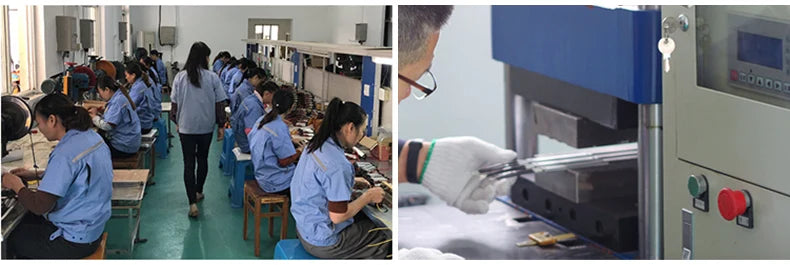

About Our Company

Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.

FAQ

Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.If you have another question,please send us your RFQ.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question,please send us your RFQ.

Packing & Delivery

Packing Details : Packing, 50pcs/carton
Delivery Details : 1-3 days after order
